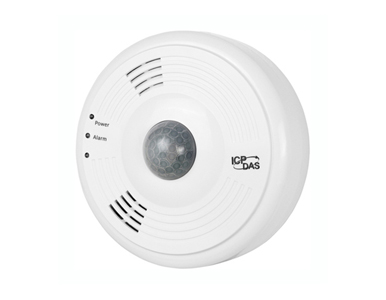

PIR-130-DC - Passive Infrared 360 degree Motion and Temperature Sensor Module, 10 ~ 30 VDC
by ICP DAS
|
|
|
|
Passive Infrared (PIR) 360° Motion and Temperature Sensor Module. DCON and RS-485 Modbus RTU protocol. 10~30 VDC with operating temperature range of -25°C ~ +75°C (-13°F ~ +167°)
|
|
|
The PIR-130-DC module has a 1-channel passive infrared (PIR) sensor that detects human-body generated infrared waves within a range of approximately 8 meters in diameter with a 360° coverage area. The PIR-130-DC is for indoor motion detection and can be configured to automatically switch on a light if motion is detected. It also includes a 1-channel temperature sensor that can measure room temperature or be configured to activate a fire alarm.
The device has an RS-485 interface and runs on DCON and Modbus RTU protocols.
- 360° Motion Detection Up to 8 meter Diameter Range
- Time-Delay / Lux. / Sensitivity Adjustable
- Photo Sensor Inside for Smart Switch-on Control
- LED Indicator for PIR/Temperater Sensor
- The Temperature Sensor for Measuring Room Temperature or Fire Alarm
- Relay Output Can be Used to Control the Light Via the PIR/Temperature Sensor
- Up to 1500 W Incandescent and 300 W Fluorescent (T8) Loading Capability
- RS-485 Communication Interface
- DCON and Modbus RTU Protocols
- Ceiling Surface Mount Design
CPU Module |
Time-delay |
Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049
Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194 |
LUX Control Level |
Hardware: 2 mode (Dawn and dust) / Software: 5-step |
Detection Range |
Distance: 4 meters Max. |
Detection Field of View |
360° Diameter 8 meters Max. |
Temperature Sensor |
Measurement Range |
-25°C ~ +100°C (-13°F ~ 212°F) |
Fire Alarm |
65°C (Programmable) |
Resolution |
0.0625°C |
Accuracy |
±2°C |
Relay Output |
Channel |
1 |
Type |
Power Relay, Form C |
Max. Load Current |
NO: 10 A @ 250 VAC
NC: 6 A @ 250 VAC |
Load Wattage |
Incandescent Bulb: 1500 W Max.; Fluorescent Lamp 300 W Max. |
RS-485 Interface |
COM Port |
RS-485 |
Transmission Distance (m) |
Dependent on Baud Rate. For example, 1200 m Max. at 9600 bps. |
Baud Rate (bps) |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
Protocol |
DCON, Modbus RTU |
Node Address |
Hardware: 160 ~ 191 / Software: 1 ~ 255 |
LED Indicators |
LED Indicators |
Yes,1 as Power/Communication Indicator. 1 as Alarm Indicator. |
EMS Protection |
ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal, ±8 kV Air for Random Point |
EFT (IEC 61000-4-4) |
±4 kV for Power Line |
Power Requirments |
Power Supply |
10 ~ 30 VDC |
Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
Power Consumption |
1.3 W |
Mechanical |
Installation |
Ceiling mounting |
Protection Class |
IP20 |
Dimension (D x H) |
Ø 121 mm x 52 mm |
Environmental |
Operating Temperature |
-25°C ~ +75°C (-13°F ~ +167°F) |
Storage Temperature |
-30°C ~ +80°C (-22°F ~ +176°F) |
Humidity |
10 to 90% RH, Non-condensing |
|
|
