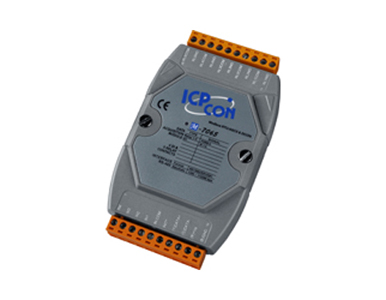

M-7065 - 5 Channel Power Relay Output and 4 Isolated Digital Input (Counter) Data Acquisition Module, communicable over Modbus R
by ICP DAS
|
|
|
|
5 Channel Power Relay Output and 4 Isolated Digital Input (Counter) Data
Acquisition Module, communicable over Modbus RTU and RS-485, supports operating
temperatures from -25°C ~ 75°C
|
|
|
M-7065 is a data acquisition and control module, digital input/output. The
module can be remotely controlled using a set of commands, which we call the
DCON protocol. Communication between the module and the host is in ASCII format
via an RS-485 bi-directional serial bus standard. Baud Rates are software
programmable and transmission speeds of up to 115.2K baud can be selected. The
functionality of the M-7000 series is the same as the I-7000 series, except
M-7000 series offers extended support for the Modbus RTU protocol.
|
Digital Input |
|
Channels |
4 |
|
Input Type |
Sink, Source, isolated channels with common ground or power |
|
Off Voltage Level |
+1 V max. |
|
On Voltage Level |
+4 ~ +30 V |
|
Input Impedance |
3K Ohm, 0.5 W |
|
Counters |
channels : 4 |
|
Max. Counters : 16-bit (65535) |
|
Max. Input Frequency : 100 Hz |
|
Min. Pulse Width : 5 ms |
|
Optical Isolation |
3750 Vrms |
|
Relay Output |
|
Channels |
5 |
|
Relay Type |
Form "A” relay SPST (N.O.) |
|
Contact rating |
AC: 250 V @ 5 A |
|
DC: 30 V @ 5 A |
|
Operating Time(Max.) |
6 ms |
|
Release Time(Min.) |
3 ms |
|
Total Switching Time |
10ms |
|
Surge Strength |
4,000 VAC |
|
Insulation Resistance |
1000 M Ohm min. at 500 VDC |
|
Life Time |
Mechanical : 20 x 10^6 OPS |
|
Electrical : 100 x 10^3 Full Load |
|
Interface |
|
Interface |
RS-485 |
|
Format |
N, 8, 1/N, 8, 2/E, 8, 1/O, 8, 1 |
|
Baud Rate |
1200 ~ 115200 bps |
|
LED Display |
|
1 LED |
as Power/ Communication indicator |
|
Power |
|
Input Voltage Range |
10 ~ 30 VDC |
|
Power Consumption |
1.3 W (max.) |
|
Protocol |
|
Support Modbus and DCON Protocol |
Yes |
|
Environment |
|
Operating Temperature |
-25°C ~ 75°C |
|
Storage Temperature |
-40°C ~ 85°C |
|
Humidity |
5 ~ 95 %, non-condensing |
|
|
