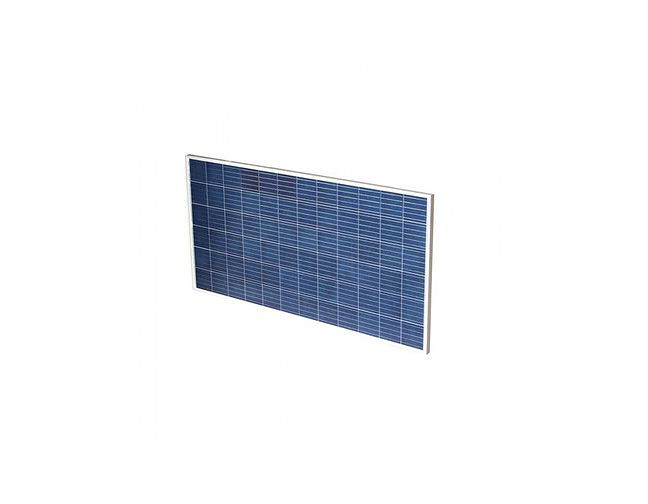

Tycon Systems TPS-24-360W - 360W 24V High Efficiency, 72 cellSolar Panel - 77 x 39" x 1.6
by TYCON SYSTEMS
|
|
|
|
- Up to +3% Positive Power Output Tolerance
- Excellent Low Light Performance
- Extremely Reliable. 5 Year Product Warranty. 25 year solar cell output warranty.
- High Efficiency with high transparency low iron tempered glass cover. Rugged extruded anodized aluminum frame
- Sealed for protection from harsh environments
|
|
|
The TPS-24-360W solar panels are high efficiency 72 cell design with excellent low light performance. The panels are perfect for almost any off-grid or on-grid application.
The monocrystalline silicon solar cells are laminated with a TPT (Tedlar/Polyester/Tedlar) and EVA (Ethylene Vinyl Acetate) bi-layer for high reliability and long life.
The cell array is sealed in a heavy duty extruded type 6063 alloy aluminum frame with a high transparency low iron tempered glass cover, with anti-reflective coating to enhance solar absorption, and protect the solar cells from harsh environments; hail, wind, snow and ice.
The solar panels are easy to mount because of the aluminum frame design. The wired connections are via a weatherproof junction box on the back of the panels and include attached 1.1 meter outdoor cables terminated with standard MC-4 solar connectors.
| Maximum Power (+3%) |
360W |
| Voltage at Pmax (Vmp) |
38.55V |
| Current at Pmax (Imp) |
9.34A |
| Open Circuit Voltage (Voc) |
47.73V |
| Short Circuit Current (Isc) |
9.87A |
| Module Efficiency |
18.7% |
| Short Circuit I Temp Coeff |
0.039% / °C |
| Open Circuit V Temp Coeff |
-0.307% / °C |
| Output Power Temp Coeff |
-0.423%/°C |
| Wind Survivability (2400Pa) |
225kph (140mph) |
| Hailstone Survivability |
1” @ 50mph |
| Snow Loading (5400Pa) |
Up to 22” of very heavy wet snow |
| Operating Temperature |
-40 to +85°C |
| Size |
1956 x 990 x 40mm (77 x 39 x 1.57”) |
| Weight |
22kg (49lb) |
| Certifications |
UL1703, IEC 61701, IEC 62716, ULC/ORDC1703:218 |
|
|
|
|
