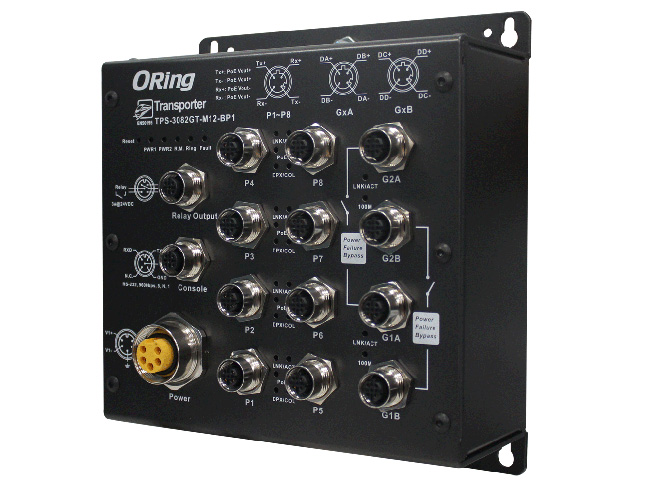

TPS-3082GT-M12-BP1-24V - EN50155 IP40 8x 10/100TX (M12) PoE @15.4Watts + 2x 10/100/1000TX (M12) with HW Bypass feature and with by ORing Industrial Networking

TPS-3082GT-M12-BP1-24V - EN50155 IP40 8x 10/100TX (M12) PoE @15.4Watts + 2x 10/100/1000TX (M12) with HW Bypass feature and with
by ORing Industrial Networking
Write a review Write a review
TPS-3082GT-M12-BP1_SUMMARY
  • Leading EN50155-compliant Ethernet switch for rolling stock application
  • 8 ports P.S.E. fully compliant with IEEE802.3af standard, provide up to 15.4 Watts per port
  • World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)
  • Open-Ring support the other vendor’s ring technology in open architecture
  • STP/RSTP/MSTP supported
  • Support PTP Client (Precision Time Protocol) clock synchronization
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Port Trunking for easy of bandwidth management
  • SNMP v1/v2c/v3 support for secured network management
  • RMON for traffic monitoring
  • Support VLAN and LLDP protocol
  • DHCP assign each Equipment IP by each Port
  • Provided Relay bypass function with two gigabit ports
  • Port lock to prevent access from unauthorized MAC address
  • Event notification through Syslog, Email, SNMP trap, and Relay Output
  • Windows utility (Open-Vision) support centralized management and configurable by Web-based ,Telnet, Console (CLI)
  • M12 connectors to guarantee reliable operation against environmental disturbances
  • Wall mounting enabled
ORing’s TransporterTM series managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TPS-3082GT-M12-BP1 is a managed PoE Redundant Ring Ethernet switch with 8x10/100Base-T(X) P.S.E. and 2x10/100/1000Base-T(X) ports which is specifically designed for the toughest and fully compliant with EN50155 requirement. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. TPS-3082GT-M12-BP1 also supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each TPS-3082GT-M12-BP1 switch has 8X10/100Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. TPS-3082GT-M12-BP1 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. TPS-3082GT-M12-BP1 can be managed centralized and convenient by a powerful windows utility ~ Open-Vision. In addition, the wide operating temperature range from -40 oC to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet application.
Physical Ports
10/100 Base-T(X) Ports in M12 Auto MDI/MDIX with P.S.E. 8 x M12 connector (4-pin D-coding)
10/100/1000 Base-T(X) Ports in M12 Auto MDI/MDIX 2 x (combing 2 x M12 connectors 4-pin D-coding for 1 Gigabit port)
RS-232 Serial Console Port in A-coding

RS-232 in M12 connector. Baud rate setting: 9600bps, 8, N, 1
Technology

Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3af PoE specification (up to 15.4 Watts per port for P.S.E.)

MAC Table

8192 MAC addresses

Priority Queues

4

Processing

Store-and-Forward

Switch Properties

Switching latency: 7 us
Switching bandwidth: 5.6Gbps
Max. Number of Available VLANs: 4096
IGMP multicast groups: 1024
Port rate limiting: User Define

Security Features

Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q ) to segregate and secure network traffic
Supports Q-in-Q VLAN for performance & security to expand the VLAN space
Radius centralized password management
SNMP v1/v2c/v3 encrypted authentication and access security

Software Feature

STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping for multicast filtering
Port configuration, status, statistics, monitoring, security
SNTP for synchronizing of clocks over network
Support PTP Client (Precision Time Protocol) clock synchronization
DHCP Server / Client support
Port Trunk support
MVR (Multicast VLAN Registration) support

Network Redundancy

O-Ring
Open-Ring
STP
RSTP
MSTP

Warning / Monitoring System

Relay output for fault event alarming
Syslog server / client to record and view events
Include SMTP for event warning notification via email
Event selection support
LED Indicators
Power Indicator Green : Power LED x 2
R.M. Indicator

Green : Indicate system operated in O-Ring Master mode
Ring Indicator Green : indicate system operated in O-Ring mode

Fault Indicatorr

 Amber : Indicate unexpected event occurred

10/100Base-T(X) M12 PoE Port Indicator

 Up Green for port Link/Act.  Down Green for PoE indicator.  Amber for Collision/Duplex indicator.

10/100/1000Base-T(X) M12 Port Indicator

 Green for Link/Act.  Amber for 100Mbps indicator
Fault contact
Relay

Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Power
Redundant Input Power

Dual 48VDC on 5-pin M23 connector
Power Consumption (Typ.) 9 Watts
Overload Current Protection Present
Reverse Polarity Protection Not Present
Physical Characteristic
Enclosure IP-40
Dimension (W x D x H)

170 (W) x 75 (D) x196 (H) mm
Weight (g)

1427 g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 70°C (-40 to 158°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory approvals
EMI FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
EMS

EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
