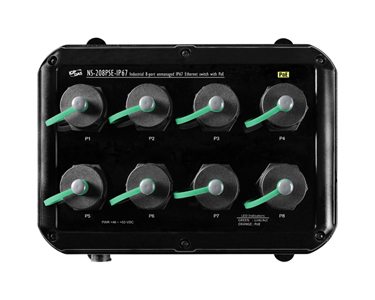

ICP DAS NS-208PSE-IP67 - NS-208PSE in IP 67 case
by ICP DAS

Industrial 8-port unmanaged IP67 Ethernet switch with PoE, Includes IP67 RJ-45 Plug x 8, IP67 Power Plug x 1, Cap with Tether x 8

Description
Specification
Datasheet

The NS-208PSE-IP67/NS-208-IP67 is designed for industrial applications in harsh environments. The rugged RJ-45 ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock.

The NS-208PSE-IP67 PoE switch provides 8 fast Ethernet with 8 IEEE 802.3af compliant PoE ports. The switch is classified as power source equipment (PSE) and provide up to 15.4 W of power per port.

The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

Automatic MDI/MDI-X crossover for plug-and-play
Store-and-forward architecture
Each port supports both 10/100 Mbps speed auto negotiation
Full duplex IEEE 802.3x and half duplex backpressure flow control
Rugged RJ-45 Connector for anti-vibration and shock
IP67 grade protection approval
8 PoE ports with Power Sourcing Equipment (PSE) operation
(NS-208PSE-IP67 series)
Auto-detection of PD (powered devices) and automatic power management (NS-208PSE-IP67 series)
Over-temperature, over-current and over/under-voltage detection (NS-208PSE-IP67 series)

Comparison Table of 5/8 Port IP67 Ethernet Switch

Models	NS-205-IP67	NS-205-IP67/DIN	NS-205PSE-IP67	NS-205PSE-IP67/DIN	NS-208PSE-IP67	NS-208-IP67
PoE	–		802.3af x 4		802.3af x 8
Input Voltage Rangeg	+10 ~ +30 VDC (1 kV Isolated)		+46 ~ +53 VDC			+12 ~ 53 VDC
Installation	Wall Mounting	DIN-Rail or Wall Mounting	Wall Mountin	DIN-Rail or Wall Mounting	DIN-Rail or Wall Mountin
Dimensions (W x H x D) (Unit: mm)	85 x 76 x 137	89 x 90 x 138	85 x 76 x 137	89 x 90 x 138	190 x 155 x 104

Technology
Standards	IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Processing Type	Store & forward; wire speed switching
MAC Addresses	1024
Memory Bandwidth	2 Gbps
Frame Buffer Memory	512 Kbit
Flow Control	IEEE 802.3x flow control, back pressure flow control
Interface
LED Indicators	PWR, Link/Act , Power Device is detected
Ethernet Isolation	1500 Vrms 1 minute
Connection	Rugged RJ-45
Power Input
Input Voltage Range	+46 ~ +53 VDC for PoE output
Power Consumption	0.05 A @ 48 VDC without PD loading; 1.45 A @ 48 VDC with PD full loading
Protection	Power reverse polarity protection
Connection	IP67 PWR Plug
PoE Technology
PoE Compliance	100% IEEE 802.3af compliant
PoE Classification	PSE (Power Sourcing Equipment)
PoE Voltage	+46 ~ +48 VDC depending on power input
PoE Power	Up to 15.4 watts per channel
PoE Operation	Automatic detection and power management
PoE Pin Assignments	V+ (Pin 1, 2), V- (Pin 3, 6)
PoE Disconnect Mode	DC disconnect
Mechanical
Casing	Plastic (Flammability UL 94V-0)
Environmental Rating	Protection rating IP67 for Operating Temperature -10 °C ~ +60 °C
Environmental Rating	Protection rating IP66 for for Operating Temperature -40 °C ~ +75 °C
Dimensions (W x L x H)	190 mm x 155 mm x 104 mm
Installation	DIN-Rail or Wall Mounting
Environment
Operating Temperature	-10 °C ~ +60 °C (Protection rating IP67)
Operating Temperature	-40 °C ~ +75 °C (Protection rating IP66)
Storage Temperature	-10 °C ~ +60 °C (Protection rating IP67)
Storage Temperature	-40 °C ~ +75 °C (Protection rating IP66)
Ambient Relative Humidity	100% RH for Operating Temperature -10 °C ~ +60 °C
Ambient Relative Humidity	10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C
