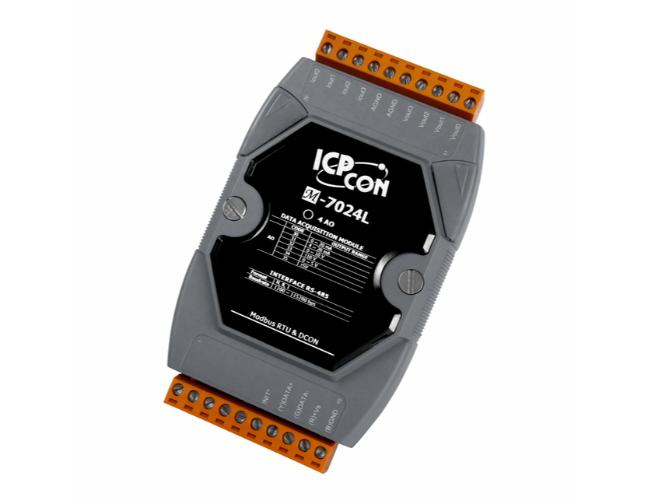

ICP DAS M-7024L - 12-bit 4-channel Analog Output Module using the DCON and Modbus Protocol
by ICP DAS

The M-7024L is a family of network data acquisition and control modules that support Modbus RTU. They can be remotely controlled using a set of commands called DCON protocol. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/ HMI software and PLCs.

Analog Output
Output Channels	4
Output Type	0~20mA, 4~20mA, 0~5V, +/-5V, 0~10V, +/-10V
Resolution	12-bit
Accuracy	+/-0.1% of FSR
Zero Drift	Voltage output : +/-30uV/C
	Current output : +/-0.2uA/C
DA Output Response Time	10ms per channel
Span Temperature Coefficient	+/-20ppm/ C
Programmable Output Slope	0.125 to 2048 mA/ second 0.0625 to 1024 V/ second
Current load resistor	External +24V power : 1050Ohms
Intra-module Isolation, Field to Logic	3000 VDC
Interface
Interface	RS-485
Format	N, 8, 1
Baud Rate	1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
Power
Input	+10 to +30 Vdc
Power Consumption	2.4W
Protocol
Modbus RTU, DCON	Yes
Environment
Operating temperature	-25 to 75C
Storage temperature	-40 to 85C
Humidity	5 to 95% RH, non-condensing
