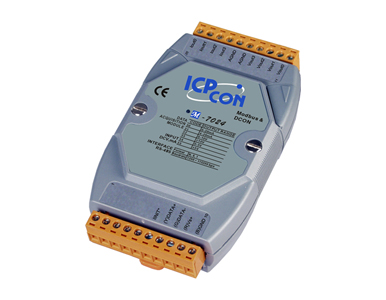

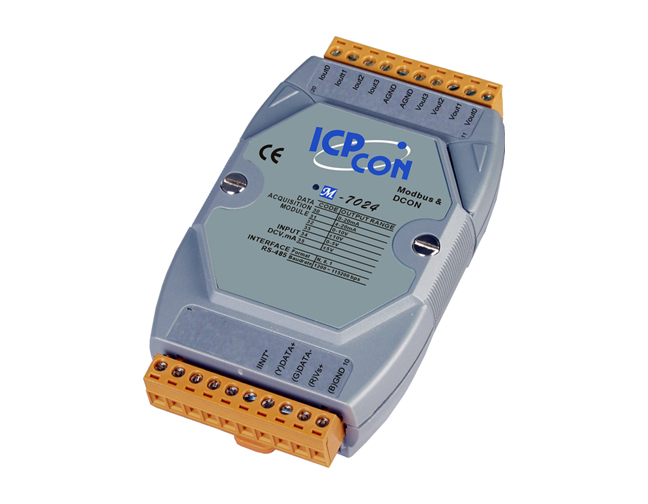

ICP DAS M-7024 - 4 Channel, 14-bit Analog Output, Voltage Output, Current Output Data Acquisition Module, communicable over Modb
by ICP DAS

The M-7000 series is a family of network data acquisition and control modules that support Modbus RTU. They can be remotely controlled using a set of commands called DCON protocol. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/ HMI software and PLCs.

• Communication Interface: RS-485
• Din Rail Mount
• Analog Output Channels: 4
• Indication LED Light: for power and communication
• 14-bit resolution
• Photo-isolation: 3750 Vrms
• Output type: mA, V
• Output range:
  • 0 ~ 20mA, 4 ~ 20mA, 0 ~ 5V, ±5V, 0 ~ 10V, ±10V
• Accuracy: ± 0.1% of FSR
• Resolution: ± 0.02% of FSR
• Zero drift:
  • Voltage output: ± 30uV/°C
  • Current output: ± 0.2uA/°C
• Span temperature Coefficient: ± 20ppm/ °C
• Programmable output slope:
  • 0.125 to 2048 mA/second
  • 0.0625 to 1024 V/second
• Current load resistor:
  • External +24V power: 1050 Ohms
• Power Supply:
  • Input: +10 to +30Vdc
  • Consumption : 2.4W
